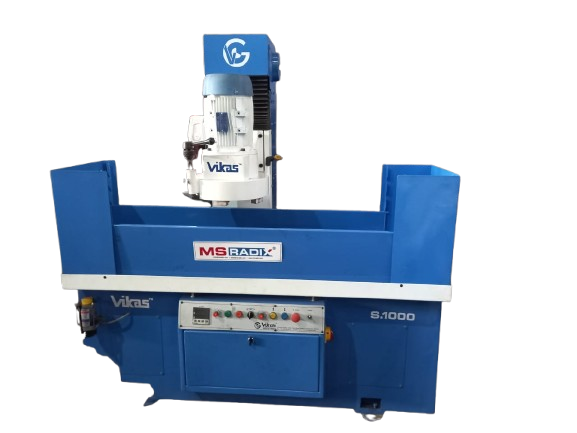

Surface Grinding cum Milling Machine
MS Radix Impex Solutions is a leading Surface Grinding Cum Milling Machine Manufacturer, Supplier, and Exporter in India, offering high-precision machines for cylinder head and engine block resurfacing. Our Surface Grinding Cum Milling Machine is designed to deliver accurate grinding and milling operations for automotive engine rebuilding and reconditioning applications. This machine is widely used in automotive workshops, engine reconditioning centers, and industrial maintenance facilities. It helps restore the flatness and surface finish of cylinder heads and engine blocks, ensuring proper engine performance and durability. Our Cylinder Head Surface Grinding Machine is specially designed to resurface and recondition cylinder heads with high accuracy. Built with strong construction and advanced technology, the machine ensures smooth operation, reliable performance, and long service life.
Surface Grinding Machine for Cylinder Head
A Surface Grinding Machine for Cylinder Head is used to remove unevenness, distortion, corrosion and damaged material from the mating surface of a cylinder head. A properly resurfaced cylinder head helps establish the correct contact between the cylinder head and engine block.
MS Radix machines are engineered to perform controlled material removal while maintaining accuracy across the working surface. Depending on the component and machining requirement, operators can use the appropriate grinding or milling arrangement to obtain the required finish. The variable spindle speed with digital read-out assists the operator in controlling machining conditions. Variable table-travel feed supports uniform movement of the job during resurfacing. The ball-screw-driven table and power-operated head movement further contribute to controlled and dependable operation.
Model
S-1000
S-1500
Max. Length of Job
mm
850 x 290
1400 x 330
Segment Wheel Size
mm
305
355
Table Size
mm
945 x 285
1500 x 305
Max. Distance Grinding
mm
450
635
Wheel to Table Surface Grinding Wheel Motor
HP
3.00, AC Variable Drive Control
5.00, AC Variable Drive Control
Table Feed Motor
HP
0.50 AC Variable Drive Control
1.00 AC Variable Drive Control
Head Rapid Motor
HP
0.25
0.50
Length
mm
2200
2500
Width
mm
900
1100
Height
mm
1770
1770
Weight (approx.)
Kgs.
1100
1900
Standard Accessories
Tool Holder
Nos.
1
1
Parallel Block
Nos.
2+2
2+2
Grinding Wheel Dresser
Nos.
1
1
Coolant Tank
Nos.
1
1
Features :
- Variable spindle speed with digital read-out
- Variable table-travel feed
- Ball-screw drive on the table
- Ball-screw-based head power feed
- Grinding wheel and milling tool arrangement
- Splash and safety guard
- Manual lubrication oil pump
- Optional touch-screen model
- Coolant tank
- Grinding wheel dresser
- Tool holder and parallel blocks
