Cylinder Honing Machine Manufacturer, Supplier & Exporter
MS Radix Impex Solutions is a trusted Cylinder Honing Machine Manufacturer, offering precision-engineered equipment for accurate finishing and reconditioning of engine cylinder bores. We offer purpose-built machines for the accurate finishing and restoration of engine cylinder bores. Our machines are suitable for engine-reconditioning workshops, automotive service centres, industrial maintenance departments and businesses involved in repairing cylinder blocks.
A cylinder bore must have the correct diameter, geometry and surface texture to support efficient piston movement. Wear, glazing, scratches and minor dimensional variations can affect lubrication, compression and overall engine performance. A Honing Machine for Cylinder Block helps correct these surface imperfections and produces a controlled cross-hatch pattern within the bore. This pattern assists with lubricant retention and supports the proper seating of piston rings.
MS Radix focuses on providing practical cylinder-reconditioning solutions that combine accuracy, operational convenience and dependable performance. Customers can contact our team for machine information, application guidance, commercial quotations and support in choosing a model suitable for their cylinder-block honing requirements.
TECHNICAL SPECIFICATIONS

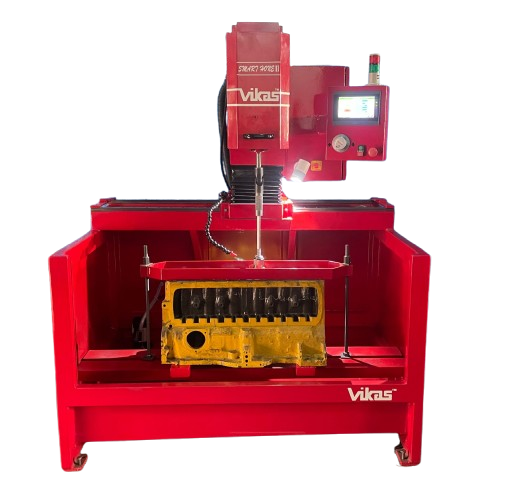

| Brand & Model | VIKAS - SMART HONE-II | |
| Maximum Honing Diameter | 150 mm | |
| Minimum Honing Diameter | 50 mm | |
| Minimum Honing Stroke | 50 mm | |
| Maximum Honing Stroke | 500 mm | |
| Stroke Speed | Servo Drive Variable | |
| Spindle Speed Variable | 25 – 200 RPM | |
| POWER | ||
| Touch Screen | 7” | |
| Motor Spindle Drive | 1.5 KW / 2 HP AC Drive | |
| Z Axis Servo Motor | 1.5 KW / 2 HP AC Drive | |
| Electric Coolant Pump Motor | 0.09 KW / 0.12 HP | |
| STANDARD ACCESSORIES | ||
| Parallel Block | 4 Nos. | |
| Honing Head | 50–75 mm (1 No.) | 62–140 mm (1 No.) | |
| Block Tightening Stud & Nut | 1 Set | |
| Block Clamping | 1 Set | |
| DIMENSIONS | ||
| Length | 1600 mm | |
| Width | 1400 mm | |
| Height | 1900 mm | |
| Nett Weight (Approx.) | 900 Kgs. | |
| Gross Weight (Approx.) | 1600 Kgs. | |
Benefits of Cylinder Block Honing
Improved Bore Surface
Honing removes light scratches, glazing and minor surface irregularities from compatible cylinder bores. It prepares a more uniform surface for the piston-ring system.
Controlled Cross-Hatch Pattern
A properly produced cross-hatch pattern supports lubricant retention on the cylinder wall. Its angle and consistency depend on the relationship between honing-head rotation and stroke speed.
Better Piston-Ring Seating
An appropriately honed bore provides a suitable surface for piston-ring contact. This can support the engine-rebuilding process when all associated components and clearances are within the required limits.
Correction of Minor Geometrical Errors
Depending on the bore condition and process setup, honing may help reduce minor taper, out-of-roundness and surface variations. Severe defects may require boring or another machining operation before honing.
Consistent Reconditioning Quality
A properly configured machine offers greater control over the finishing process. This is particularly valuable for workshops that handle different engine blocks and require repeatable operating procedures.
Reduced Unnecessary Material Removal
Honing is intended to remove a small, controlled amount of material. Accurate measurement during the process helps prevent excessive removal and protects the required final bore size.
Applications of Cylinder Honing Machines
Cylinder honing machines are used in businesses and facilities involved in engine repair, manufacturing support and mechanical maintenance. Common application areas include:
- Automotive engine-rebuilding workshops
- Cylinder-block reconditioning units
- Car and commercial-vehicle service centres
- Tractor and agricultural-machinery workshops
- Generator repair and maintenance facilities
- Diesel-engine overhaul centres
- Industrial maintenance departments
- Transport-fleet maintenance workshops
- Marine-engine repair facilities, subject to machine capacity
- Engineering training and technical institutes
- Machinery repair and refurbishment businesses
- Engine-component service providers
The suitability of a machine for a particular application depends on its bore capacity, stroke, tooling, fixture arrangement and operational configuration.
Why Choose MS Radix?
Customers considering MS Radix for their cylinder-block reconditioning requirements can benefit from:
- Understanding of engine-reconditioning machinery
- Application-based machine-selection assistance
- Machines intended for professional workshop use
- Support for domestic and international enquiries
- Guidance regarding relevant models and tooling
- Clear technical and commercial communication
- Availability of related engine-rebuilding machines
- Focus on practical operation and maintainability
- Assistance with accessories and applicable requirements
- Support during the enquiry and order process
Buyers should discuss their exact application with our team to receive model-specific information.
Request a Cylinder Honing Machine Quotation
If you require a dependable Honing Machine for Cylinder Block, contact MS Radix with your application details. Please provide the bore-diameter range, maximum honing depth, cylinder-block dimensions, expected workload, destination and any special tooling requirements.
Our team will review the information and provide details of a suitable machine option, subject to availability and technical feasibility. Contact us today for specifications, price, delivery information and assistance in selecting a cylinder honing machine for your workshop or engine-reconditioning facility.
